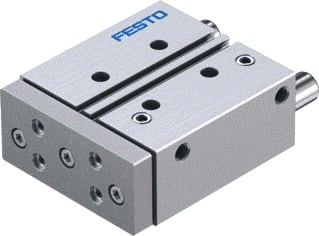

Festo - Pneumatic cylinder Dfm-25-50-P-A-Gf - 170851
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 50 mm
Dual-action - Yes
Operating pressure - 1.5 t/m 10 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance - 1: Little
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6174283
Leverancierscode
170851
EAN
4052568013172
Commercieel bestelnummer
DFM2550PAGF
HGS code
188405
Douanenummer
85444290
Stroke length:
50 mm
Dual-action:
Yes
Operating pressure:
1.5 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-20 t/m 80 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 50mm, dual-action yes, operating pressure 1.5 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little, ambient temperature -20 - +80°C, max. torque for protection against 3.9Nm, theoretical force at 6 bar, return 247N,
