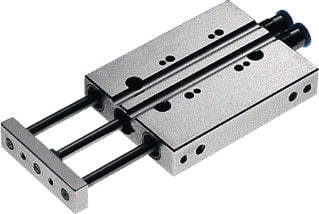

Festo - Pneumatic cylinder dfc-10-5-p-a-kf - 189473
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 5 mm
Dual-action - Yes
Operating pressure - 1 t/m 10 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature - -5 t/m 60 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7621540
Leverancierscode
189473
EAN
4052568150181
Commercieel bestelnummer
DFC-10-5-P-A-KF
HGS code
188403
Douanenummer
85444290
Stroke length:
5 mm
Dual-action:
Yes
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature:
-5 t/m 60 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 5mm, dual-action yes, operating pressure 1 - 10bar, operating medium compressed air ISO 8573-1, ambient temperature -5 - +60°C, theoretical force at 6 bar, return 35N, theoretical force at 6 bar, advance 47N, surface protection housing untreated
