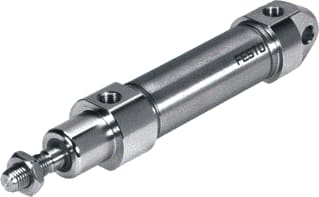

Festo - Pneumatic cylinder crdsnub2010ppsamga1 - 8073980
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 10 mm
Inner diameter - 20 mm
Dual-action - Yes
Damping - Double-sided
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6960502
Leverancierscode
8073980
EAN
4052568298166
Commercieel bestelnummer
CRDSNUB2010PPSA
HGS code
188404
Douanenummer
85444290
Stroke length:
10 mm
Inner diameter:
20 mm
Dual-action:
Yes
Damping:
Double-sided
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
4: Very high
Ambient temperature:
0 t/m 80 °C
Material piston rod:
High alloy steel, non-corrosive
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 20mm, stroke length 10mm, dual-action yes, damping double-sided, mounting method any, operating pressure 1 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 4: Very high, ambient temperature 0 - 80°C, free of copper and PTFE NO,
