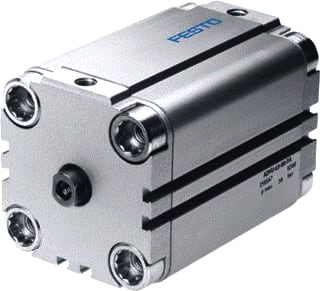

Festo - Pneumatic cylinder advu-32-20-p-a - 156533
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 32 mm
Stroke length - 20 mm
Dual-action - Yes
Damping - Double-sided
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6173240
Leverancierscode
156533
EAN
4052568117979
Commercieel bestelnummer
ADVU-32-20-P-A
HGS code
188403
Douanenummer
85444290
Inner diameter:
32 mm
Stroke length:
20 mm
Dual-action:
Yes
Damping:
Double-sided
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
0.8 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 32mm, stroke length 20mm, dual-action yes, damping double-sided, connection Piston rod end internal thread metric, mounting method any, operating pressure 0.8 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average,
