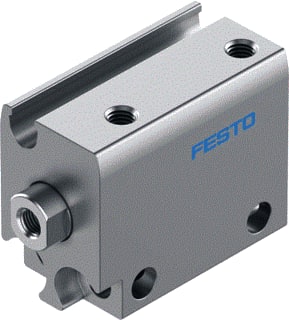

Festo - Pneumatic cylinder 5269268 - 5269268
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 10 mm
Stroke length - 5 mm
Damping - None
Connection Piston rod end - Internal thread metric
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7649281
Leverancierscode
5269268
EAN
4052568422424
Commercieel bestelnummer
AEN-S-10-5-I-A
HGS code
188405
Douanenummer
85444290
Inner diameter:
10 mm
Stroke length:
5 mm
Damping:
None
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
1.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-10 t/m 60 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 10mm, stroke length 5mm, damping none, connection Piston rod end internal thread metric, mode of operation pushing action, mounting method any, operating pressure 1.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little,
