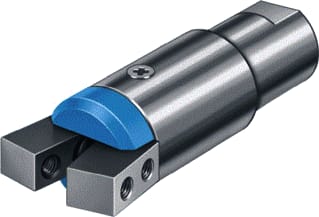

Festo - Gripper (pneumatic/hydraulic) hgwm-12-eo-g8 - 185701

Type of drive:

Pneumatic

Number of arms:

2

Holding force:

20 N

Mode of operation:

Single acting N.O.

Model:

Inclined plane

Max. operating frequency of gripper:

4 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

45 g

Mounting method:

Clamped

Pneumatic connection:

M3

Materials note:

Free of copper and PTFE

Material cover cap:

Polyoxymethylene (POM)

Housing material:

High alloy steel, non-corrosive

Material gripper jaws:

High alloy steel
