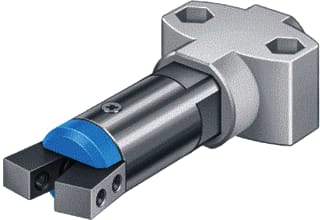

Festo - Gripper (pneumatic/hydraulic) hgwm-12-eo-g6 - 185699
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 20 N
Mode of operation - Single acting N.O.
Model - Inclined plane
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6924410
Leverancierscode
185699
EAN
4052568144630
Commercieel bestelnummer
HGWM-12-EO-G6
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
20 N
Mode of operation:
Single acting N.O.
Model:
Inclined plane
Max. operating frequency of gripper:
4 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
75 g
Mounting method:
With internal (female) thread
Pneumatic connection:
M3
Materials note:
Free of copper and PTFE
Material cover cap:
Polyoxymethylene (POM)
Housing material:
High alloy steel, non-corrosive
Material gripper jaws:
High alloy steel
