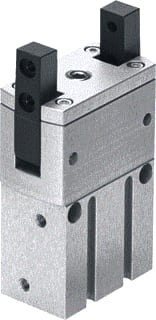

Festo - Gripper (pneumatic/hydraulic) hgrt-16-a - 563904
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 50 N
Type - Radial
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6176299
Leverancierscode
563904
EAN
4052568211042
Commercieel bestelnummer
HGRT-16-A
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
50 N
Type:
Radial
Mode of operation:
Double acting
Model:
Guided motion sequence
Max. operating frequency of gripper:
3 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
130 g
Mounting method:
Internal thread and centring sleeve
Pneumatic connection:
M3
Materials note:
Free of copper and PTFE / Conforms to RoHS
Housing material:
Aluminium Smooth anodised
Material gripper jaws:
Steel Hardened
Festo gripper (pneum./hydrau./elec.), type of drive pneumatic, weight 130g, materials note free of copper and PTFE /
