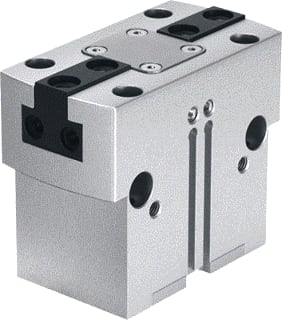

Festo - Gripper (pneumatic/hydraulic) hgpt-50-a-b-g2 - 560224

Type of drive:

Pneumatic

Number of arms:

2

Holding force:

3.2 N

Type:

Parallel

Mode of operation:

Double acting

Model:

Inclined plane guided motion sequence

Max. operating frequency of gripper:

2 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

1.832 g

Mounting method:

Int. thread centr. sleeve w through-hole centr. sleeve

Pneumatic connection:

G 1/8"

Materials note:

Free of copper and PTFE / Conforms to RoHS

Material cover cap:

High alloy steel, non-corrosive

Housing material:

Aluminium anodised

Material gripper jaws:

Steel Hardened

Stroke per gripper jaw:

12 mm
