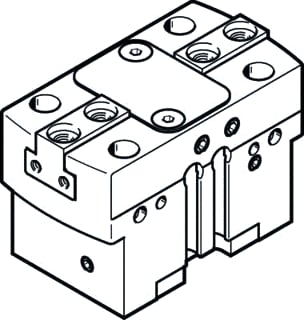

Festo - Gripper (pneumatic/hydraulic) hgpt-25-a-b-f - 560207
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 1.2 N
Type - Parallel
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6942904
Leverancierscode
560207
EAN
4052568206727
Commercieel bestelnummer
HGPT-25-A-B-F
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
1.2 N
Type:
Parallel
Mode of operation:
Double acting
Model:
Inclined plane guided motion sequence
Max. operating frequency of gripper:
3 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
266 g
Mounting method:
Int. thread centr. sleeve w through-hole centr. sleeve
Pneumatic connection:
M5
Materials note:
Free of copper and PTFE / Conforms to RoHS
Material cover cap:
High alloy steel, non-corrosive
Housing material:
Aluminium anodised
Material gripper jaws:
Steel Hardened
Stroke per gripper jaw:
3 mm
