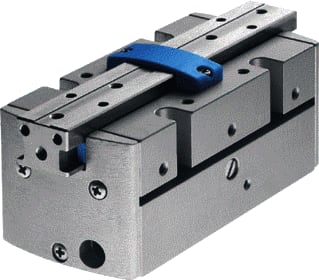

Festo - Gripper (pneumatic/hydraulic) hgpp-25-a - 525661
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 380 N
Type - Parallel
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6932761
Leverancierscode
525661
EAN
4052568161842
Commercieel bestelnummer
HGPP-25-A
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
380 N
Type:
Parallel
Mode of operation:
Double acting
Model:
Rack and pinion
Max. operating frequency of gripper:
4 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
884 g
Mounting method:
With internal (female) thread
Pneumatic connection:
M5
Materials note:
Free of copper and PTFE
Material cover cap:
Polyoxymethylene (POM)
Housing material:
Wrought aluminium alloy, hard anodised
Material gripper jaws:
Wrought aluminium alloy, Nickel plated
Stroke per gripper jaw:
10 mm
