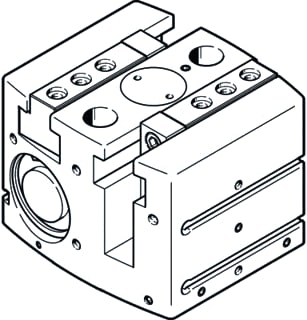

Festo - Gripper (pneumatic/hydraulic) hgpl-40-20-a-b - 3361487

Type of drive:

Pneumatic

Number of arms:

2

Holding force:

2.5 N

Type:

Parallel

Mode of operation:

Double acting

Model:

Twin piston Guide Piston slide T-shaped rack and pinion

Max. operating frequency of gripper:

1 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

2.56 g

Mounting method:

Int. thread centr. sleeve w through-hole centr. sleeve

Pneumatic connection:

M5

Materials note:

Free of copper and PTFE / Conforms to RoHS

Housing material:

Aluminium Smooth anodised

Material gripper jaws:

Steel Hardened

Stroke per gripper jaw:

20 mm
