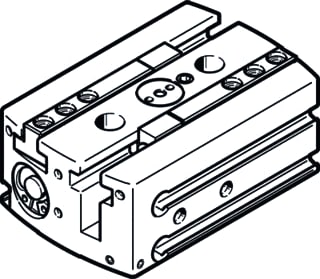

Festo - Gripper (pneumatic/hydraulic) hgpl-14-20-a-b - 3361479
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 500 N
Type - Parallel
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6955343
Leverancierscode
3361479
EAN
4052568269166
Commercieel bestelnummer
HGPL-14-20-A-B
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
500 N
Type:
Parallel
Mode of operation:
Double acting
Model:
Twin piston Guide Piston slide T-shaped rack and pinion
Max. operating frequency of gripper:
1 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
305 g
Mounting method:
Int. thread centr. sleeve w through-hole centr. sleeve
Pneumatic connection:
M5
Materials note:
Free of copper and PTFE / Conforms to RoHS
Housing material:
Aluminium Smooth anodised
Material gripper jaws:
Steel Hardened
Stroke per gripper jaw:
20 mm
