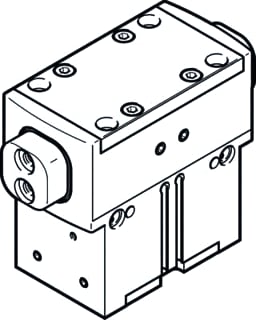

Festo - Gripper (pneumatic/hydraulic) hgpd-35-a-g1 - 1132946

Type of drive:

Pneumatic

Number of arms:

2

Type:

Parallel

Mode of operation:

Double acting

Model:

Inclined plane guided motion sequence

Max. operating frequency of gripper:

3 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

682 g

Mounting method:

Int. thread centr. sleeve w through-hole centr. sleeve

Pneumatic connection:

M5

Materials note:

Conforms to RoHS

Material cover cap:

High alloy steel, non-corrosive

Housing material:

Aluminium anodised

Material gripper jaws:

Steel Hardened

Stroke per gripper jaw:

8 mm
