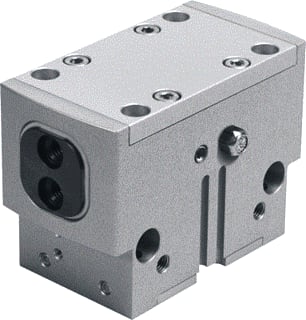

Festo - Gripper (pneumatic/hydraulic) hgpd-35-a - 1132945
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 750 N
Type - Parallel
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7698365
Leverancierscode
1132945
EAN
4052568227104
Commercieel bestelnummer
HGPD-35-A
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
750 N
Type:
Parallel
Mode of operation:
Double acting
Model:
Inclined plane guided motion sequence
Max. operating frequency of gripper:
3 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
572 g
Mounting method:
Int. thread centr. sleeve w through-hole centr. sleeve
Pneumatic connection:
M5
Materials note:
Conforms to RoHS
Material cover cap:
High alloy steel, non-corrosive
Housing material:
Aluminium anodised
Material gripper jaws:
Steel Hardened
Stroke per gripper jaw:
8 mm
