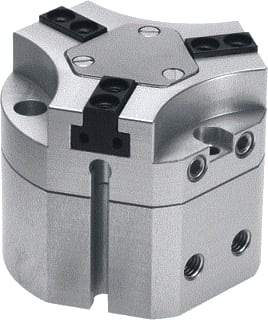

Festo - Gripper (pneumatic/hydraulic) hgdt-35-a - 540862
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 3
Holding force - 400 N
Mode of operation - Double acting
Model - Inclined plane guided motion sequence
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6938529
Leverancierscode
540862
EAN
4052568179366
Commercieel bestelnummer
HGDT-35-A
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
3
Holding force:
400 N
Mode of operation:
Double acting
Model:
Inclined plane guided motion sequence
Max. operating frequency of gripper:
4 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
307 g
Mounting method:
With through-hole dowel pin w internal thread dowel pin opti
Pneumatic connection:
M5
Materials note:
Free of copper and PTFE
Material cover cap:
High alloy steel, non-corrosive
Housing material:
Wrought aluminium alloy COMPCOTE coated
Material gripper jaws:
Steel Hardened
Stroke per gripper jaw:
4 mm
