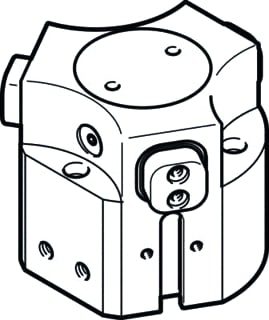

Festo - Gripper (pneumatic/hydraulic) hgdd-40-a-g1 - 1163041

Type of drive:

Pneumatic

Number of arms:

3

Holding force:

700 N

Mode of operation:

Double acting

Model:

Inclined plane guided motion sequence

Max. operating frequency of gripper:

4 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

775 g

Mounting method:

With through-hole dowel pin w internal thread dowel pin opti

Pneumatic connection:

M5

Materials note:

Free of copper and PTFE / Conforms to RoHS

Material cover cap:

High alloy steel, non-corrosive

Housing material:

Wrought aluminium alloy Smooth anodised

Material gripper jaws:

Steel Hardened

Stroke per gripper jaw:

6 mm
