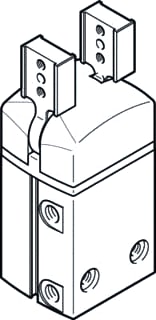

Festo - Gripper (pneumatic/hydraulic) dhrs-40-a-nc - 1310167
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Number of arms - 2
Holding force - 200 N
Type - Radial
Mode of operation - Double acting
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6952669
Leverancierscode
1310167
EAN
4052568229641
Commercieel bestelnummer
DHRS-40-A-NC
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Number of arms:
2
Holding force:
200 N
Type:
Radial
Mode of operation:
Double acting
Model:
Guided motion sequence
Max. operating frequency of gripper:
2 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
844 g
Mounting method:
Int. thread centr. sleeve w through-hole centr. sleeve opti
Pneumatic connection:
G 1/8"
Materials note:
Conforms to RoHS
Material cover cap:
Polyamide (PA)
Housing material:
Wrought aluminium alloy, hard anodised
Material gripper jaws:
High alloy steel
