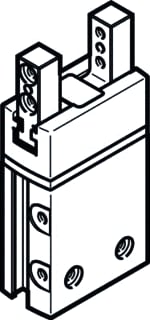

Festo - Gripper (pneumatic/hydraulic) dhps-10-a-nc - 1254042

Type of drive:

Pneumatic

Number of arms:

2

Holding force:

60 N

Type:

Parallel

Mode of operation:

Double acting

Model:

Lever guided motion sequence

Max. operating frequency of gripper:

4 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

68 g

Mounting method:

Int. thread centr. sleeve w through-hole centr. sleeve opti

Pneumatic connection:

M3

Materials note:

Conforms to RoHS

Material cover cap:

Polyamide (PA)

Housing material:

Wrought aluminium alloy, hard anodised

Material gripper jaws:

High alloy steel, non-corrosive

Stroke per gripper jaw:

3 mm
