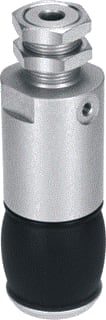

Festo - Gripper (pneumatic/hydraulic) dheb-63-e-d-e-p - 1320797
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Type of drive - Pneumatic
Mode of operation - Single acting N.C.
Model - Contractible membrane guided motion sequence
Max. operating frequency of gripper - 4 Hz
Ambient temperature - 5 t/m 60 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7625264
Leverancierscode
1320797
EAN
4052568230173
Commercieel bestelnummer
DHEB-63-E-D-E-P
HGS code
188403
Douanenummer
85444290
Type of drive:
Pneumatic
Mode of operation:
Single acting N.C.
Model:
Contractible membrane guided motion sequence
Max. operating frequency of gripper:
4 Hz
Ambient temperature:
5 t/m 60 °C
Weight:
800 g
Mounting method:
With external (male) thread with lock nut optional
Pneumatic connection:
G 1/8"
Materials note:
Contains PWIS substances conforms to RoHS
Housing material:
Aluminium anodised
