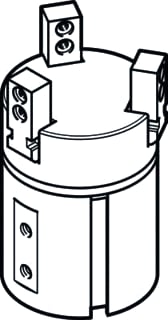

Festo - Gripper (pneumatic/hydraulic) dhds-32-a - 1259493

Type of drive:

Pneumatic

Number of arms:

3

Holding force:

150 N

Mode of operation:

Double acting

Model:

Lever guided motion sequence

Max. operating frequency of gripper:

4 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

276 g

Mounting method:

With internal thread and dowel pin

Pneumatic connection:

M5

Materials note:

Conforms to RoHS

Material cover cap:

Polyamide (PA)

Housing material:

Wrought aluminium alloy, hard anodised

Material gripper jaws:

High alloy steel, non-corrosive

Stroke per gripper jaw:

3.9 mm
