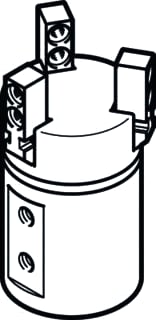

Festo - Gripper (pneumatic/hydraulic) dhds-16-a-nc - 1259492

Type of drive:

Pneumatic

Number of arms:

3

Holding force:

50 N

Mode of operation:

Double acting

Model:

Lever guided motion sequence

Max. operating frequency of gripper:

4 Hz

Ambient temperature:

5 t/m 60 °C

Weight:

99 g

Mounting method:

With internal thread and dowel pin

Pneumatic connection:

M3

Materials note:

Conforms to RoHS

Material cover cap:

Polyamide (PA)

Housing material:

Wrought aluminium alloy, hard anodised

Material gripper jaws:

High alloy steel, non-corrosive

Stroke per gripper jaw:

2.5 mm
