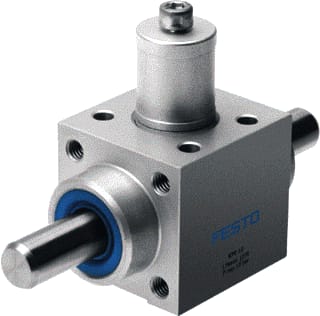

Festo - Clamping cartridge/unit clamping 178465 - 178465
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Model - Base unit
Ambient temperature - -10 t/m 80 °C
Suitable for diameter - 10 mm
Housing material - Aluminum
Surface protection housing - Anodised
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7706835
Leverancierscode
178465
EAN
4052568144296
Commercieel bestelnummer
KPE-10
HGS code
188403
Douanenummer
85444290
Model:
Base unit
Ambient temperature:
-10 t/m 80 °C
Suitable for diameter:
10 mm
Housing material:
Aluminum
Surface protection housing:
Anodised
Corrosion resistance:
2: Average
Material clamp jaws:
Brass
Material piston:
Polyoxymethylene (POM)
Material sealing ring:
Polyurethane (PUR) + NBR (nitrile rubber)
Material spring:
Spring steel
Operating pressure:
10 bar
Release pressure:
3 bar
Holding force:
350 N
Weight:
260 g
