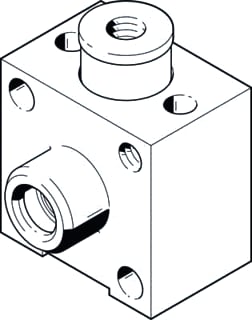

Festo - Clamping cartridge/unit clamping 178462 - 178462

Model:

Base unit

Ambient temperature:

-10 t/m 80 °C

Suitable for diameter:

4 mm

Housing material:

Aluminum

Surface protection housing:

Anodised

Corrosion resistance:

2: Average

Material clamp jaws:

Brass

Material piston:

Polyoxymethylene (POM)

Material sealing ring:

Polyurethane (PUR) + NBR (nitrile rubber)

Material spring:

Spring steel

Operating pressure:

10 bar

Release pressure:

3 bar

Holding force:

80 N

Weight:

100 g
