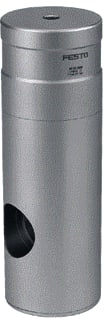

Festo - Clamping cartridge/unit clamping 178461 - 178461
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Model - Cartridge
Ambient temperature - -10 t/m 80 °C
Suitable for diameter - 32 mm
Housing material - Aluminum
Surface protection housing - Anodised
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7693192
Leverancierscode
178461
EAN
4052568144258
Commercieel bestelnummer
KP-32-7500
HGS code
188403
Douanenummer
85444290
Model:
Cartridge
Ambient temperature:
-10 t/m 80 °C
Suitable for diameter:
32 mm
Housing material:
Aluminum
Surface protection housing:
Anodised
Corrosion resistance:
2: Average
Material clamp jaws:
Brass
Material piston:
Polyoxymethylene (POM)
Material sealing ring:
Polyurethane (PUR) + NBR (nitrile rubber)
Material spring:
Spring steel
Operating pressure:
10 bar
Release pressure:
3 bar
Holding force:
7500 N
Weight:
1.6 g
