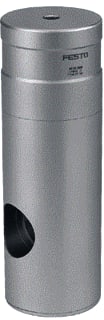

Festo - Clamping cartridge/unit clamping 178457 - 178457
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Model - Cartridge
Ambient temperature - -10 t/m 80 °C
Suitable for diameter - 16 mm
Housing material - Aluminum
Surface protection housing - Anodised
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7693171
Leverancierscode
178457
EAN
4052568014322
Commercieel bestelnummer
KP-16-1000
HGS code
188403
Douanenummer
85444290
Model:
Cartridge
Ambient temperature:
-10 t/m 80 °C
Suitable for diameter:
16 mm
Housing material:
Aluminum
Surface protection housing:
Anodised
Corrosion resistance:
2: Average
Material clamp jaws:
Brass
Material piston:
Polyoxymethylene (POM)
Material sealing ring:
Polyurethane (PUR) + NBR (nitrile rubber)
Material spring:
Spring steel
Operating pressure:
10 bar
Holding force:
1000 N
Festo clamping cartridge/unit, model cartridge, ambient temperature -10 - +80°C, suitable for diameter 16mm, housing material aluminum, surface protection housing anodised, corrosion resistance 2: Average, material clamp jaws brass, material piston polyoxymethylene (POM),
